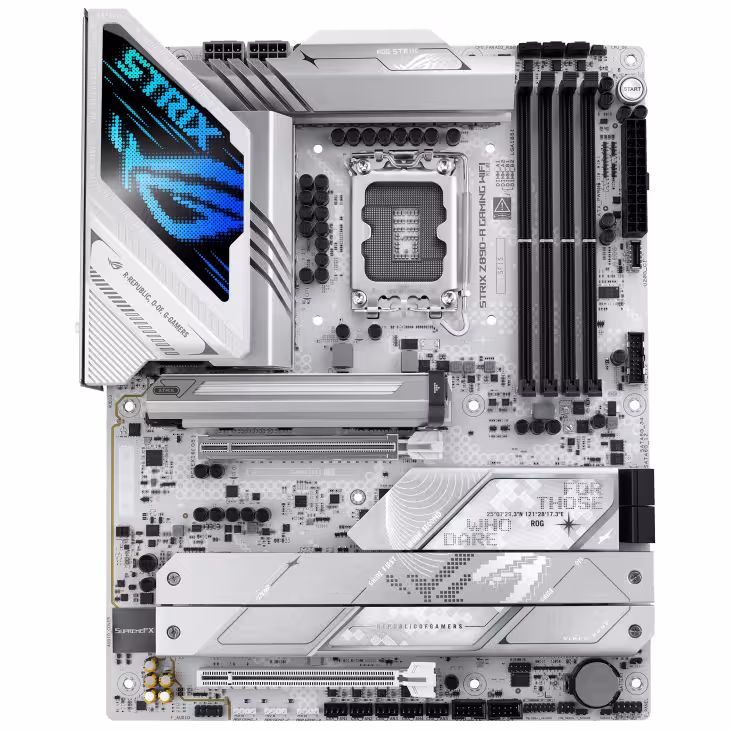

Дънна платка ASUS ROG STRIX Z890-А GAMING WIFI, LGA 1851

1851

Intel Z890

DDR5

192 GB

4

9066(OC) MHz

Да

ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4080 Supports up to 32-Bit/384 kHz playback High quality 120 dB SNR stereo playback output and 113 dB SNR recording input

Bluetooth v5.4 2x2 Wi-Fi 7 (802.11be)

1 x PCIe 5.0 x16 slot

1

1

4 x SATA 6Gb/s

M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 5.0 x4 mode) M.2_2 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode) M.2_3 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode) M.2_4 slot (Key M), type 2280/22110 (supports PCIe 4.0 x4 mode) M.2_5 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 & SATA modes)

0, 1, 5, 10

1 x 24-pin Main Power connector

1 x HDMI 1 x Display Port 1 x RJ-45 1 x optical S/PDIF Out connector 2 x Аudio jacks 1 x BIOS Flashback Button 2 x SMA antenna connectors 1 x Clear CMOS button

1 x USB Type-C 20Gbps 2 x Thunderbolt 4.0 USB Type-C 5 x USB 10Gbps порта Type-A

ATX - 30.5 x 24.4 cm

256 Mb Flash ROM, UEFI AMI BIOS
